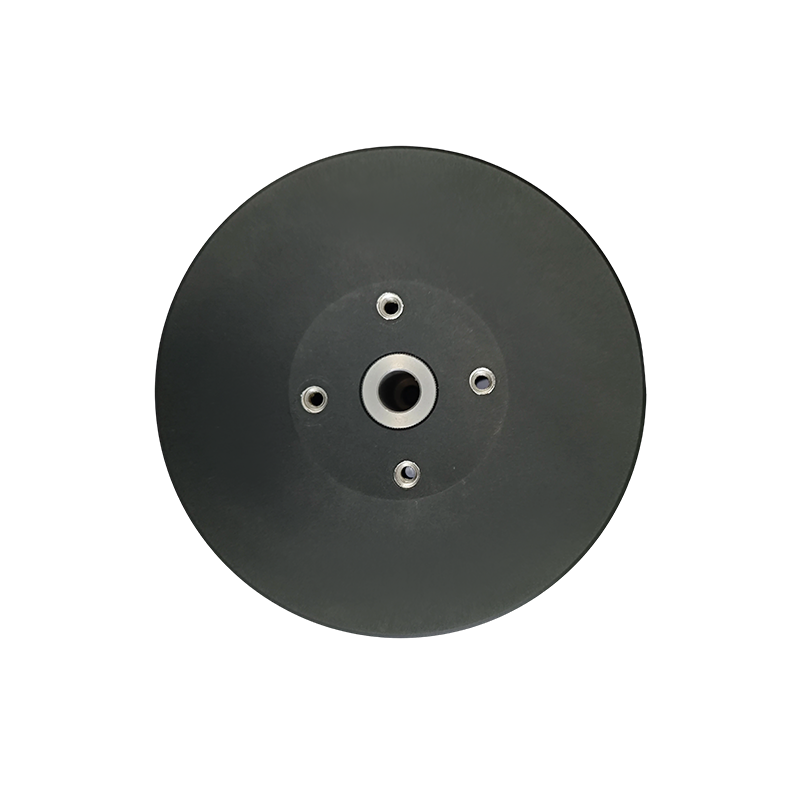

● UAV Motor - LN8318D60-001

● The 8318 agricultural drone motor is a brushless outrunner motor specifically designed for heavy-duty agricultural drones. In the model number, "83" represents a stator core diameter of 83mm, and "18" represents a core height of 18mm. It is compatible with 8-14S lithium batteries, with common KV values of 100/120, and is suitable for 80-120A ESCs, making it the mainstream power choice for 20-30L class agricultural drones.

● In terms of core performance, the motor has a maximum power output of 2900-3000W, a maximum efficiency of approximately 89%, a no-load current of 1.7A/30V, and a maximum thrust ranging from 6-17.5kg (varies by brand and model). The rated load is 5-10kg per motor, which can support a maximum takeoff weight of about 33kg for a quadcopter. It features high-purity oxygen-free copper manual winding and 180℃ heat-resistant enameled wire, paired with high-quality bearings such as EZO, providing excellent heat dissipation and durability.

● In terms of structural design, most models have an IP35 dustproof and waterproof rating, capable of withstanding rain, dust, and salt spray in field environments. Some high-end models (such as the MAD 8318 IPE) adopt a 36N42P pole-slot ratio and a centrifugal cooling system, resulting in lower temperature rise and stronger continuous operation capability. The body features a heat-dissipating shell CNC-machined from 6061-T6 aluminum alloy, weighing approximately 680-695g, balancing strength and lightweight design.

● Its advantages lie in high torque output, low energy consumption, and strong environmental adaptability. It is compatible with 30-56 inch propellers, suitable for long-duration heavy-duty operations such as pesticide spraying and seed sowing. It can stably provide continuous power in complex farmland environments, making it a key component for improving the operational efficiency and reliability of agricultural drones.

General Specification:

Rated Voltage: 60VDC

No-Load current: ≤5A

Rated Speed: 5000rpm±10%

Rated Current: 34A

Rated Torque: 3.4N.m

Motor rotation direction: CCW

Duty: S1, S2

Operational Temperature: -20°C to +40°C

Insulation Grade: Class F

Bearing Type: durable brand ball bearings

Optional shaft material: #45 Steel, Stainless Steel, Cr40

Certification: CE, ETL, CAS, UL

Application：

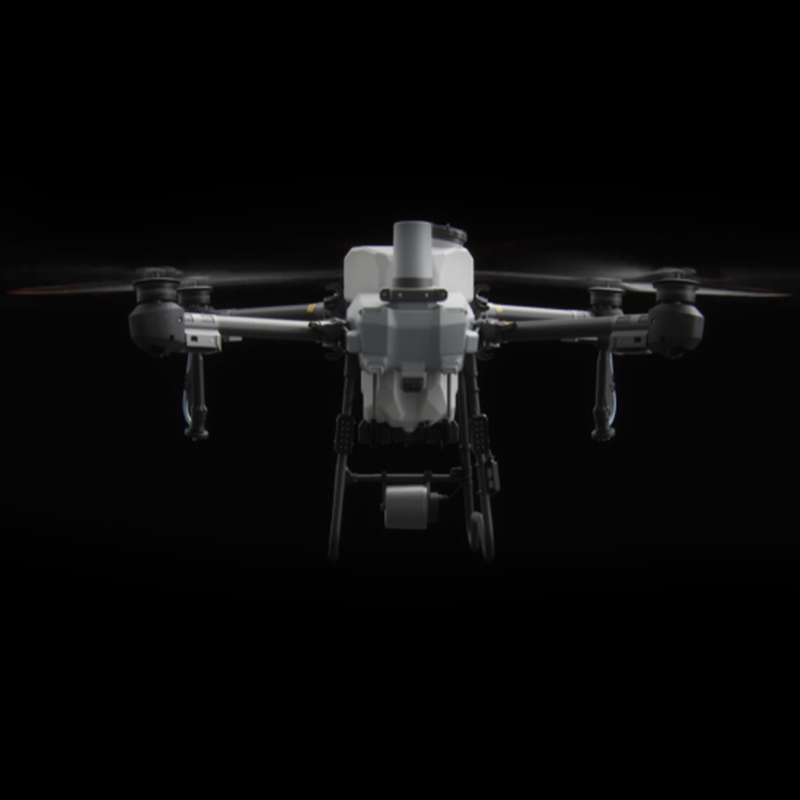

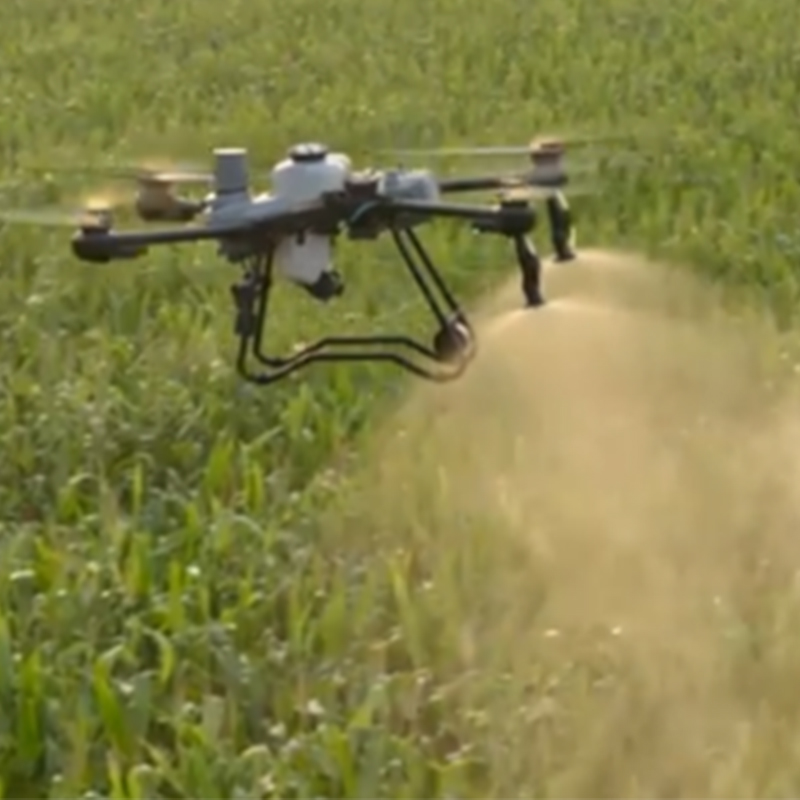

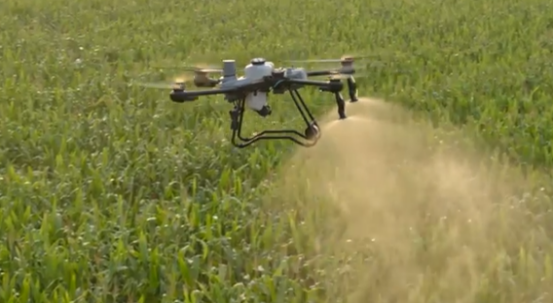

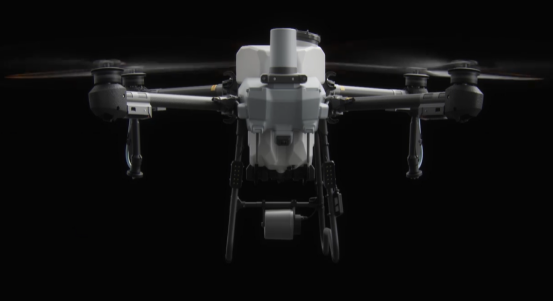

● Agricultural spraying drone
