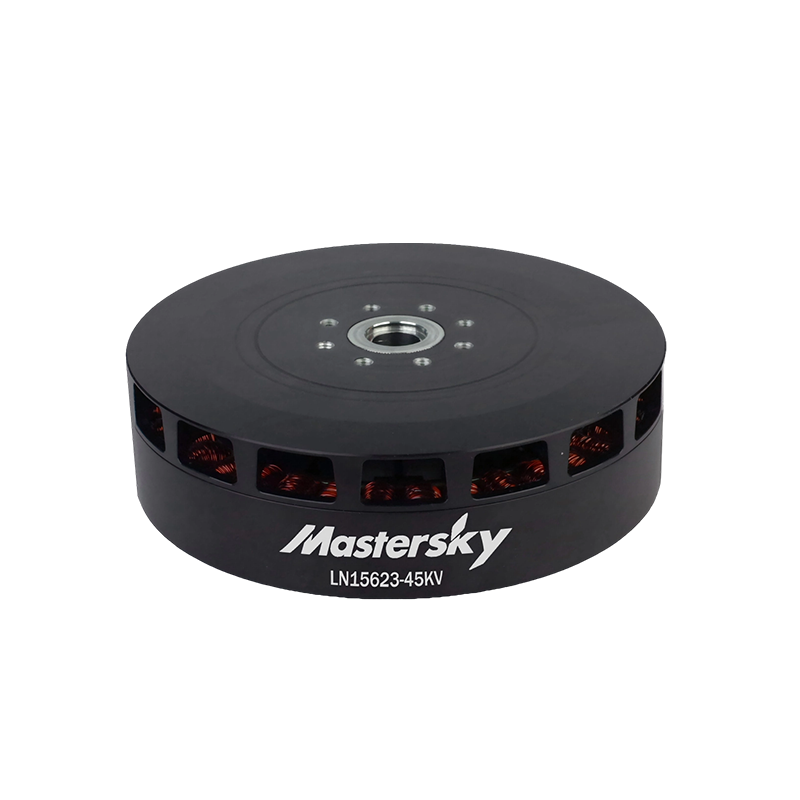

Our company has officially launched the X15 high-performance motor (Model No.: LN15623D60-001). Developed through precision manufacturing and rigorous performance calibration, this motor is tailored for applications in new energy power systems and smart equipment. With four key advantages—high load capacity, low noise levels, superior insulation, and exceptional stability—it delivers a premium power drive solution for the industry.

It is durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and anodizing surface treatment with 1000 hours long life requirement requirements.

Product introduction

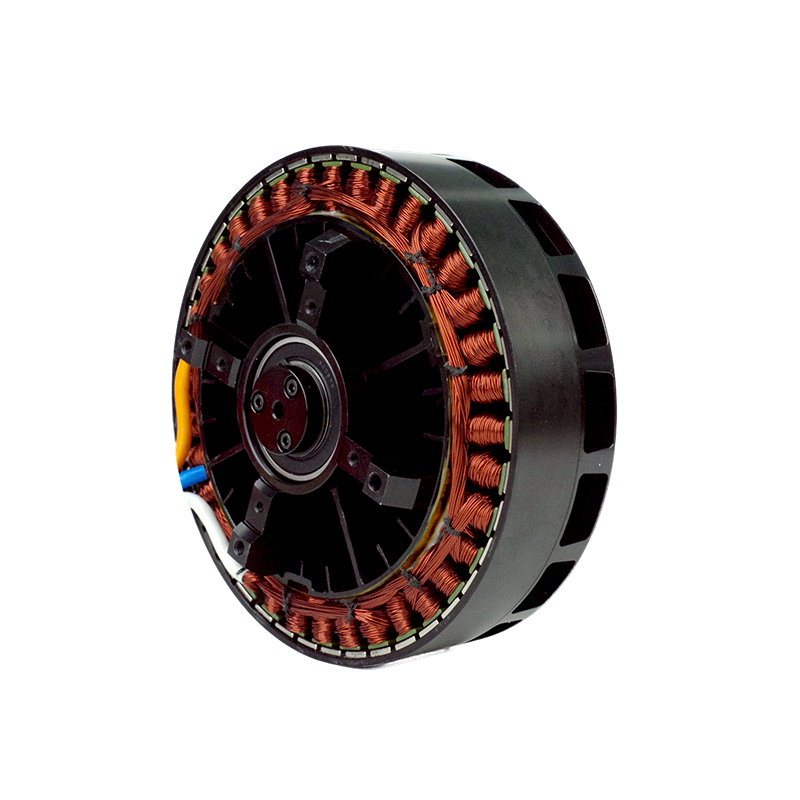

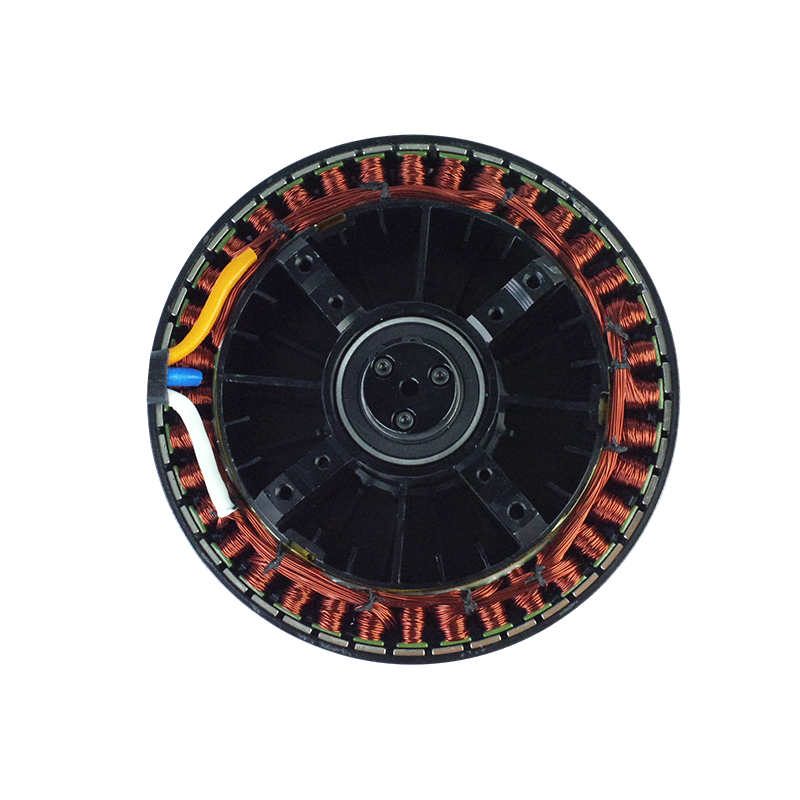

In terms of electrical and power parameters, the X15 motor operates at a rated voltage of 60 V DC, compatible with the recommended 14–18S lithium battery configuration. Its current performance is outstanding, featuring a maximum operating current of 300 A and a continuous operating current of 100 A, ensuring stable and robust power output. The load and pull performance is exceptional: it delivers a maximum pull force of 72 kg, has a powertrain weight of 2.85 kg, and is designed for takeoff weights ranging from 32.5 to 37.5 kg, making it ideal for applications such as low-altitude power equipment and intelligent transportation systems. Speed and torque control is precise; the no-load speed reaches 3600 ± 10% RPM with a maximum no-load current of 1.5 A; under load conditions, the speed is 2610 ± 10% RPM, the working current is 148.9 A ± 10%, and the rated torque is 29.25 N·m, ensuring efficient and balanced power delivery.

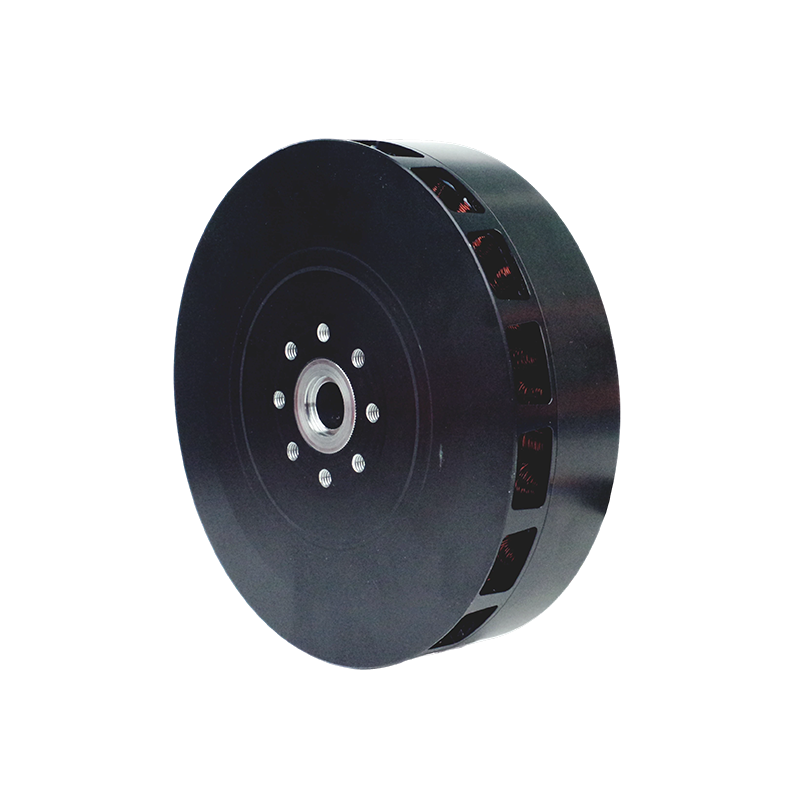

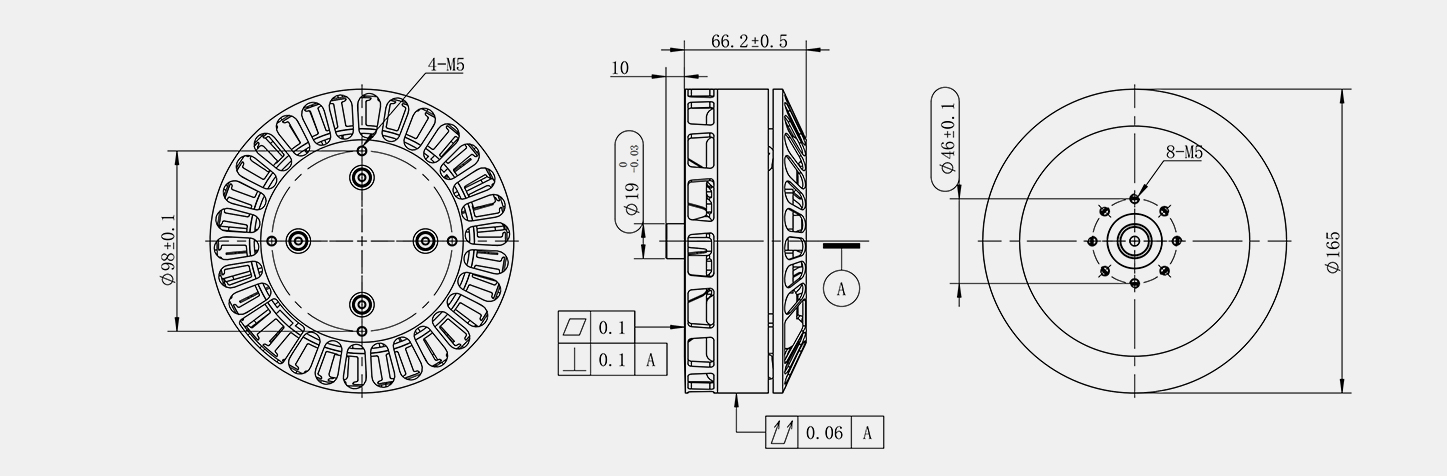

In terms of manufacturing precision and structural design, the product strictly complies with the GB/T 1804-2000 Grade M dimension tolerance standard for dimensions not specified, achieving high-precision control of both linear and angular dimensions, with stringent management of form-fit tolerances and mounting hole tolerances. It features standard mounting interfaces of 4-M5 and 8-M5 to meet diverse assembly requirements. Motor clearance is controlled within the range of 0.01–0.2 mm; combined with precise mechanical calibration, it ensures accurate operation without play. The overall design employs a 1:5 scale precision configuration, featuring a compact and symmetrical structure that balances installation compatibility with structural strength.

The motor delivers exceptional quality reliability and operational performance, featuring an insulation class of F and meeting the ADC 600V/3mA/1Sec voltage withstand test standard, ensuring outstanding insulation protection suitable for complex electrical applications. It offers superior operational performance with vibration levels ≤7 m/s and noise levels ≤60 dB at a distance of 1 meter (ambient noise ≤45 dB), ensuring smooth operation with low noise. Strict quality control ensures the unit operates without smoke, odor, noise, or axial movement; its surface is smooth and corrosion-resistant, eliminating visual defects such as rust. Additionally, the motor adopts a CCW rotation direction for the shaft end, having undergone comprehensive testing including full performance evaluation, voltage withstand tests, no-load and load performance verification, and actual vibration and noise measurements, guaranteeing stable and durable performance.

As a flagship product developed by our company with deep expertise in the electric drive sector, the X15 series motors integrate precision manufacturing processes with advanced electronic control technologies, combining high power output, exceptional accuracy, low energy consumption, and superior reliability. They find wide applications in intelligent powertrains, specialized equipment, new energy vehicles, industrial automation, and related fields. Moving forward, we will continue to focus on core motor technology R&D, continuously enhance product performance and manufacturing standards, and introduce more high-performance electric drive solutions tailored to industry needs, thereby driving the intelligent and efficient transformation of industries.

General Specification:

• Rated Voltage: 60VDC
• No-Load current: 1.5A
• No-Load speed: 3600RPM
• Load current: 148.9A
• Load speed: 2610RPM
• Motor rotation direction: CCW
• Duty: S1, S2
• Operational Temperature: -20°C to +40°C
• Insulation Grade: Class F
• Bearing Type: durable brand ball bearings
• Optional shaft material: #45 Steel, Stainless Steel, Cr40
• Certification: CE, ETL, CAS, UL
