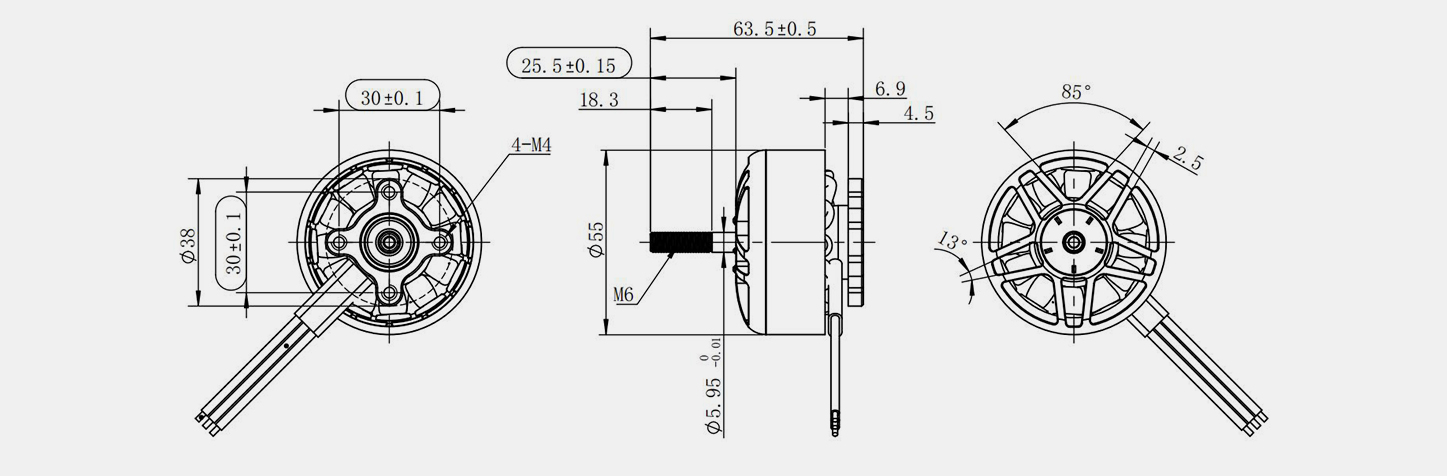

6S 320kV 350kV 380kV drone motors LN4715 1.5kg Thrust Force

Electric Spec.
Max. P (W)	Voltage (V)	Max. I. (A)	KV	No-load Current (A)		Resistance (mΩ)	Poles	Motor Dim. (mm)		Stator Dim. (mm)	Mounting (mm)	N.W. (g)	Prop. (inch)
1052	25~33.6	45	350	1.5		45	14	φ55*38		φ47*15	M3-30*30	277	13"
Thrust Testing Data
Propeller	kV Value	Throttle (%)		U (V)	I (A)		N (RPM)		Pout (W)		Pin (W)	Efficiency (G/W)
GF1310*3	350kV	30		25.13	0.304		1737.5		285		7.6	4.959
		35		25.1	1.128		2188.7		346.9		28.3	4.644
		40		25.07	2.15		2586.8		395.4		53.9	4.6
		45		25.01	3.905		3072.1		444.1		97.7	4.814
		50		24.96	5.722		3427.8		469.5		142.8	5.128
		55		24.9	7.707		3734.9		484.3		191.9	5.495
		60		24.82	10.228		4070.8		494.1		253.9	5.973
		65		24.7	13.866		4458		491.4		342.5	6.798
		70		24.59	17.485		4785.6		481.2		429.9	7.62
		75		24.45	21.663		5093.5		460.1		529.7	8.72
		80		24.3	26.413		5384.7		428.8		641.8	10.186
		85		24.13	31.418		5661.1		393.6		758.3	11.977
		90		23.96	36.765		5909.1		352.2		880.9	14.277
		95		23.75	42.922		6131.1		300.8		1019.5	17.8
		100		23.7	44.411		6217.5		292.6		1052.3	18.591

6S 320kV 350kV 380kV drone motors LN4715 1.5kg Thrust Force

The LN4715 6S Brushless Drone Motor is engineered for high-performance multirotor applications, delivering powerful and efficient thrust with precise control. Designed to support KV options of 320KV, ...

제품 매개변수

×

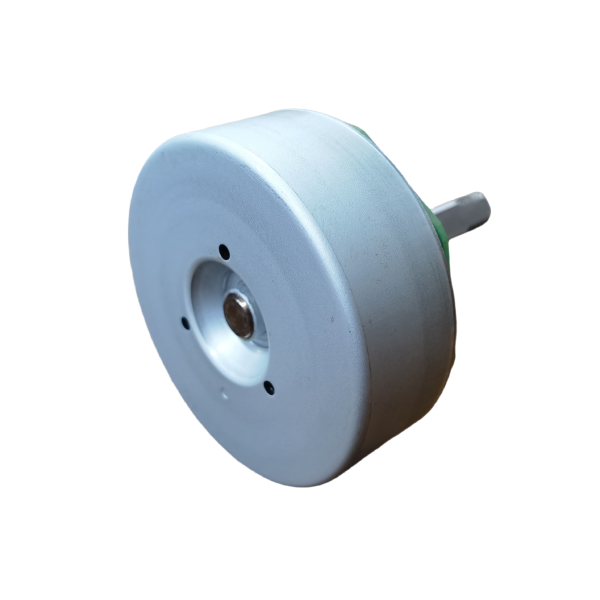

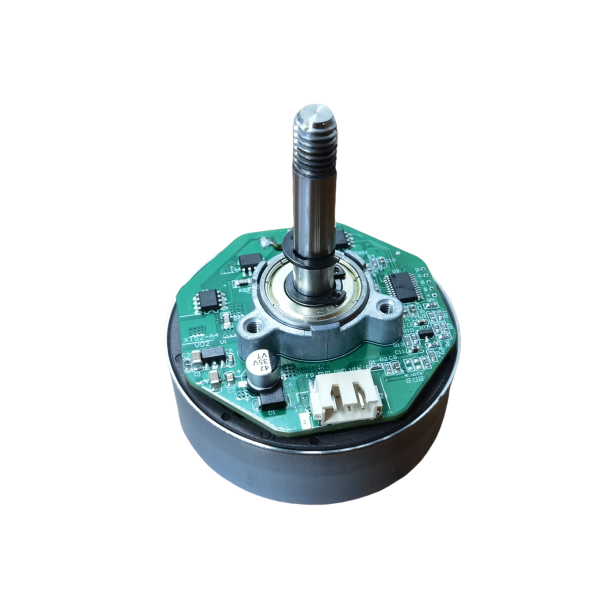

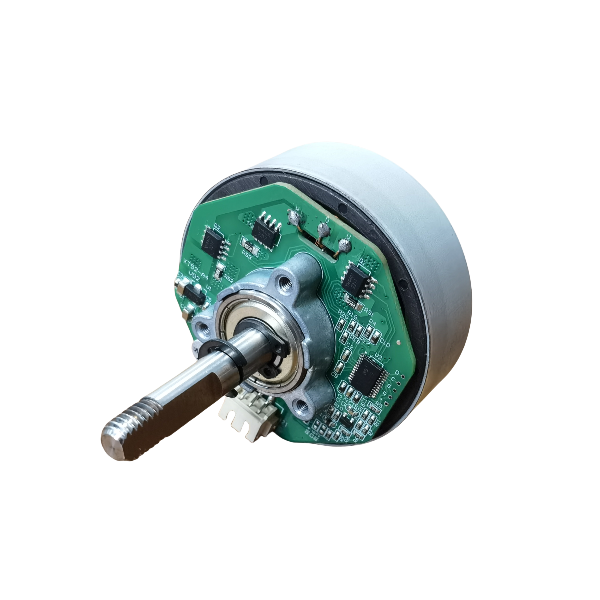

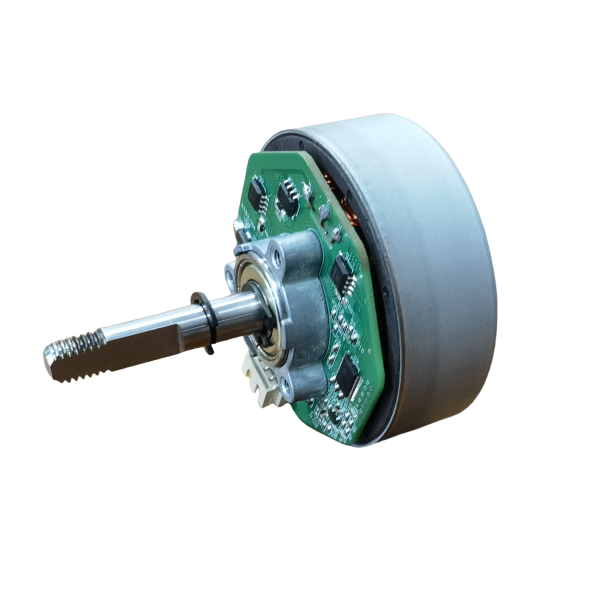

Air purifier 24VDC 40W Fan motor Ceiling Fan Motor wo60 Series

문의 보내기

Product Features:
Compatible with air purifiers and ceiling fans
Low power consumption
Quiet operation for minimal noise disturbance
Reliable and efficient motor design

Air purifier 24VDC 40W Fan motor Ceiling Fan Motor wo60 Series

Product Definition :This is a 24VDC fan motor designed for air purifiers and ceiling fans. It provides reliable performance with a power consumption of 40W, ensuring efficient air circulation and filt...

제품 매개변수
